Bay Trail Processor

Bay Trail, the code name for the Intel® Atom™ processor E3800 product family, is the first system-on-chip (SoC) designed for intelligent systems, delivering outstanding computer, graphical and media performance while operating in an extended range of thermal conditions. These SoCs are based on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm process technology with 3-D tri-gate transistors, which deliver significant improvements in computational performance and energy efficiency.

Highlights of the product family include high I/O connectivity, integrated memory controller, virtualization, error correcting code (ECC) and built-in security capabilities within a thermal design power (TDP) range of 5W to 10W.

ADL Embedded SBCs with Intel Bay Trail processors:

Item Code Description Form Factor
ADLE3800SEC
  • Small Size (75mm x 75mm)
  • 4GB soldered DRAM (DDR3-1333 Mhz)
  • Low power Atom® processor (8W TDP)
  • Quad-Core / Dual Core Versions Available
  • M.2 Storage Socket Onboard
  • Edge-Connector Expansion
  • Extended Temperature Available
  • Windows 7, Windows 8, Windows 10, Linux Compatible
  • Supports up to 2 additional PCIe devices (requires expansion card)
  • Microsoft Azure Certified for loT
Edge-Connect Architecture
ADLE3800PC
  • Intel® Atom™ E3800 Series SoC, DUAL/QUAD, 1.33 GHz – 1.91 GHz
  • DC 6W-8W, DUAL/QUAD 10W
  • Up to 8GB DDR3L-1333 DRAM
  • Reduced Type 2 Bottom-Stacking PCIe/104; Two x1 Lanes
  • 2x 10/100/1000 Mbit LAN
  • Video – VGA/DVI/DisplayPort
  • Standard -25C to +70C, -40C to +85C Option
  • Microsoft Azure Certified for loT
PCIe/104
ADLE3800HD
  • Supports Intel Atom 3800 Series Processors, DC/Quad
  • 10W E3845, 8W E3827 Processors
  • Up to 8GB DDR3L-1333 DRAM
  • 3x 10/100/1000 Mbit LAN
  • 1x DVI-I (can be adapted to VGA/HDMI)
  • 1x I-PEX MiniCoax for DVI/HDMI/DP
  • Standard -25C to +70C, -40C to +85C Option
3.5″ Boards

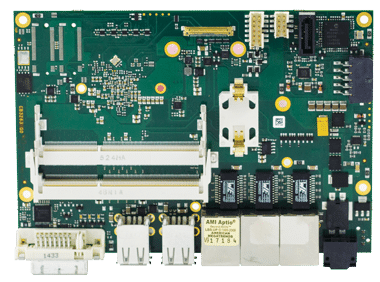

ADLE3800HDC
  • Intel Atom E3800-3845 Quad, Intel Atom E3800-3827 Dual
  • Up to 8GB DDR3L 1333MHz; 2x 204 SODIMM Sockets
  • 3x Gbit LAN; Intel i210
  • 4x USB2.0, 1x USB 3.0 via I-PEX conn
  • I-PEX shared connector for 1x USB3.0, 1x DVI, 1x HDMI or 1x DP
  • 1x SATA (3Gbit/s)
  • 1x M.2 Key-B 2242 SATA; Up 64GB
  • Microsoft Azure Certified for loT
3.5″ Boards
View All Embedded SBCs
