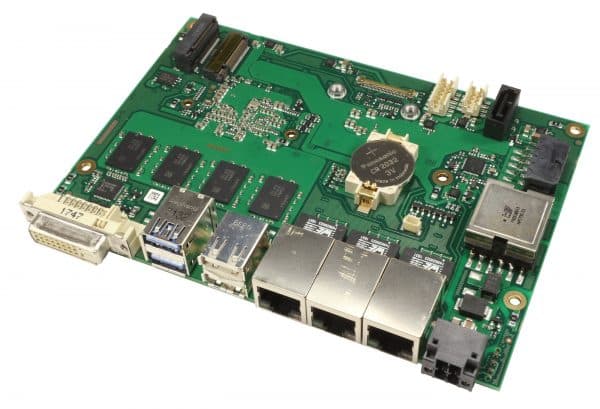

The ADLE3900HDC 3.5” SBC is a reduced I/O, lower cost version of the ADLE3900HD and is based on the Intel E3900-Series SoC Atom. These processors are rated for Tj = -40C to 110C making them ideal for a variety of industrial applications such secure networking, IIoT gateway or other industrial use scenarios.

Intel Atom 3900 Series Processors, DC/Quad 12W E3950, 6.5W E3930 Processors 8GB LPDDR4 Memory Maximum 4K resolution @ 60Hz with dual-display support 1x DVI-D I-PEX Connector for HDMI or DP Standard -20C to +70C, -40C to +85C Option

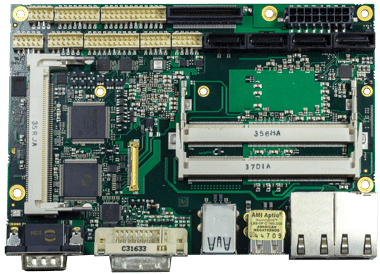

4th Generation Intel® Core™ i5 / i7, PCH Lynx Point QM87 Chipset, Dual and Quad Core; 37W to 47W, Up to 16GB DDR3L-1600; 2x SO-DIMM 204, 1.35V , PCIe 2.0 2×40 pin Bus Connector (1x PCIe x4 or 4x PCIe x1), 4x SATA, RAID 0/1/5/10 (2x SATA 6Gb/s, 2x SATA 3Gb/s), 2x 10/100/1000Mbit Ethernet LAN Port, 8x USB 2.0; 3x USB 3.0, Separate Onboard DVI / VGA, HDMI / DP, Mini PCI Type III Expansion Socket, 4x COM; RS232 Only, TPM (Trusted Platform Module) V1.2 (ATMEL AT97SC3205), Discrete 8-bit GPIO Port, 7.1 HD Audio with SPDIF In/Out , 4” x 5.8” (102mm x 147mm) 3.5-inch Form Factor
